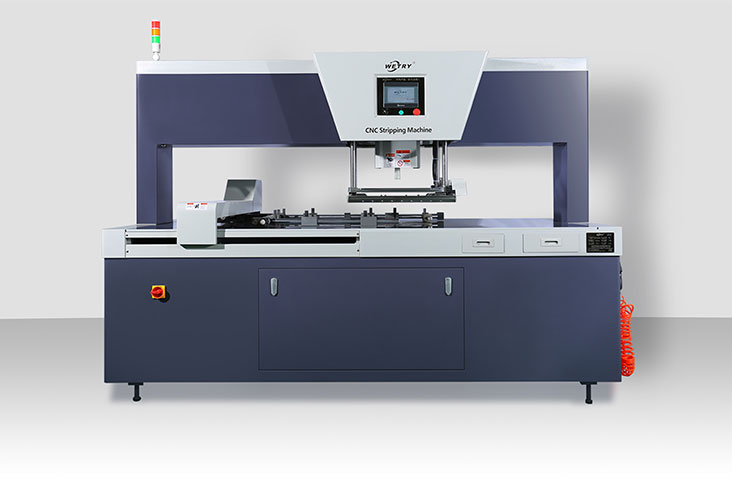

Semi-Auto Stripping Machine WETRY-M1050
*Now the GⅡ1050 has been upgraded into M1050
WETRY-M1050 Type CNC Stripping Machine adopts the exclusive technology that has Certification of
Invention Patent of China. (ZL2015103048859 ZL2016102587813 ZL2016102587404). It is able to realize automatic stripping of boxes ranged in opposite and negative directions in one time by using single head drive, which greatly reduces the transmission distance of X, Y, Z axis. It
effectively improves the accuracy and stripping speed of the transformation of paper-pile.
There are no requirements and restrictions on the products with shared blade
sheet and loose core.
-
It has been innovatively designed
with drawer type mold base and electric spinning pin base, which can strip the
waste of boxes on the sheet ranged in opposite and negative direction in one
time.
-
The newly designed numerical controlled
paper-pile push parts has lightened its own weight as well as effectively
fitted the working platform and can be adjusted at will as request.
-
Adopting the working platform
coating technology which was independently researched and developed by our
company, it has resolved the technical problem, which has always made the whole
industry in trouble, that the color changing of the ivory board while rubbing
against the metal working platform. This machine has the advantages such as
high transmission accuracy, easy to operate, quick die changing, short machine
adjustment time, and high safety factor, etc.
-
It is appropriate for all
kinds of paperboards, polypropylene sheet of hang tags, normal box, abnormal
shape box, normal buckle bottom box, automatic buckle bottom box and buckle
bottom with hook box etc.
